BATTERY TESTER BT3554-50

Overview

Specifications

Catalogs

Options

User Guides

Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.Key Features

• Battery measurement can be performed while the battery is connected to its host device, without taking it offline

• Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554

• Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage*1

• Noise reduction technology improves noise resistance

• Screen and audio*2 guidance simplifies measurement

• Measurement data is linked to site information and saved, reducing management man-hours

• A variety of measurement data can be centrally managed using Hioki’s GENNECT Cross app*3

• New protector delivers better ergonomic hold and durability in the field.

*1: The thresholds for determining the pass/fail condition of a battery depends on the specifications and standards of the battery manufacturer, battery type, capacity, etc. It is important and necessary to always conduct battery testing against the internal resistance and terminal voltage of a new or reference battery. In some cases, it may be difficult to determine the deterioration state of traditional open type (liquid) lead-acid or alkaline batteries which demonstrate smaller changes in internal resistance than sealed lead acid batteries.
*2: Audio generated by Bluetooth®-connected device.
*3: Data can be downloaded to tablets and smartphones using Hioki’s dedicated apps available from the Google Play or App Store. (When using the Z3210)

Model No. : BT3554-51 Kit
Bundled with Pin Type Lead 9465-10

Model No. : BT3554-52 Kit
Bundled with Pin Type Lead L2020

Click here to see fullscreen video

Accurately assess lead-acid battery deterioration using proprietary technology

The new Battery Tester BT3554-50 sets a new standard for UPS and lead-acid battery diagnostics. Since the battery’s internal resistance and voltage are measured using the impedance method, diagnostics can be performed while the battery is connected to its host device, without taking it offline. Proprietary noise reduction technology allows more accurate measurement, even in noisy environments.

Enjoy measurement guidance and easy data management functionality with the latest software

When the BT3554-50 is paired with a dedicated mobile app (GENNECT Cross), the mobile device will provide audio guidance announcing the next battery number to be measured. This feature helps prevent erroneous measurements. You can also set up measurement locations informations and battery numbers in advance to create profiles to which measurement data and diagnostic results will be linked. This capability simplifies data management, even when performing diagnostic work on large numbers of batteries.

Get Results in as Fast as 2 Seconds

Simply touch the test leads to the battery terminals to easily capture battery condition data with the Hioki BT3554-50 Battery Tester. Automatically save measurements results using the auto-hold or auto-memory function in just 2 seconds, a 60% reduction from the legacy product.

Generating comparative judgments based on a lead-acid battery’s internal resistance and voltage

By using its comparator function to simultaneously measure the internal resistance and voltage of a lead-acid, nickel-cadmium, or nickel-hydride battery, the BT3554-50 can generate comparative judgments quantifying degradation of the cell based on user-specified threshold values.
Furthermore, voltage sign detection facilitates instantaneous determination of whether batteries have been connected properly in newly installed UPS systems.

Saving data easily just by placing the leads in contact with a battery’s terminals

The BT3554-50 auto-hold function automatically holds measured values once they stabilize. The instrument’s auto-memory function, which automatically stores measured values resulting from the auto-hold function in its internal memory, further streamlines work tasks.

New leads for more convenient measurement in distribution panels and other confined locations

The Pin Type Lead L2020 with L-shaped tips is available as a new option. The design significantly improves ease of use when inspecting batteries installed in confined locations.

How to use Battery Testers: Observing Measurement Results Captured Wirelessly on a Mobile Device

Measured values captured by the Hioki BT3554-50 Battery Tester with Bluetooth wireless technology can be displayed and saved onto a mobile device wirelessly. (When using the Wireless Adapter Z3210)
The results can also be used to create automatic reports. Simply install the free GENNECT Cross app onto your mobile device and connect to the Hioki BT3554-50. Reports created on your mobile device can even be e-mailed to the office to further increase work efficiency. Data uploaded by the Gennect Cross app can also be loaded into a PC to view the historical state of the specified battery as a graph.

Applications: Manage other UPS inspection data together

GENNECT can serve as a central repository for managing data from Hioki clamp meters and other instruments.
Example: UPS inspection
1.UPS system ACV measurement (CM4372, CM4374)
2.DCV measurement (CM4372, CM4374)
3.AC/DC current measurement (CM4372, CM4374)
4.Ripple current measurement (CM4002)
5.Battery degradation diagnostics (BT3554-50)
6.Measurement site photograph

Click here for sample data

Input measurement data automatically into your existing Excel form: Excel® Direct Input function

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel file once the measurement Auto-hold function is activated. You can easily input the data into an existing Excel form. (When using the Wireless Adapter Z3210)

Wall and shoulder straps let you work with both hands

If you’re measuring a number of batteries in a large area, use the included shoulder strap to carry the instrument with you while making measurements. Or if there are numerous batteries at a single location, use the Magnetic Strap Z5020 (sold separately) to hang the instrument on the wall while you work.

Basic specifications Accuracy guaranteed for 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

	BT3554-51 Kit	BT3554-52 Kit
Resistance measurement range	3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt) Testing source frequency: 1 kHz ±30 Hz With function for avoiding noise frequency enabled: 1 kHz ±80 Hz Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range) Open terminal Voltage: 5 V peak
Voltage measurement range	± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt
Temperature measurement accuracy	Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy: ±1.0°C (±1.8°F) When using the Clip Type Lead with Temperature Sensor 9460. * When using the Temperature Probe 9451, add ±0.5°C (±0.9°F) (cable length: 1.5 m [59.1"]). * When using the Temperature Probe 9451S, add ±0.5°C (±0.9°F) (cable length: 0.1 m [3.94"]). BT3554-50 standalone accuracy with simulated input: ±0.5°C (±0.9°F)
Absolute max. input voltage	60 V DC max. (No AC input)
Measurement time	100 ms
Response time	Approx. 1.6 sec.
Comparator	Compares measured values with set threshold values to make judgments and reports them to the user. Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound When the Voltage value (high): Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL When the Voltage value (low): Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight. User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment ) Savable settings: 200 tables
Memory　functionality	Operation: Save, load, and delete measurement data, Save and delete profile information, Number of data sets: 6000, Memory architecture: 500 data sets per unit (12 units) Saved data: Saved measurement data is linked to profile information. 1. Measurement data: Data can be saved, loaded, and deleted by operating the instrument. -1. Date and time -2. Resistance value, voltage value, and temperature -3. Comparator threshold value and judgment result 2. Profile information: Profile information can be saved, loaded, and deleted using a supported application (GENNECT Cross or GENNECT One). -1. Profile numbers: 1 to 100 (Data (2), (3), and (4) below are saved for each profile number) -2. Location: User-defined comment such as location of UPS -3. Device information: User-defined comment such as UPS management number -4. Battery number: 1 to 500 (start number, end number)
Measurement Navigator	Operation: Announces the next battery number to be measured via a screen display and audio guidance. Audio output is generated by a connected mobile device when using the Z3210 and a supported application (GENNECT Cross). Preparations: Profile information that's been registered with a supported application (GENNECT Cross or GENNECT One) must be transferred to the instrument.
Communication interface	USB Bluetooth® wireless communications (when Z3210 installed)
Other functions	Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply	199 mm (7.83 in)W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 960 g (33.9 oz) (including batteries and protector)
Accessories	Carrying Case C1014 ×1, Protector Z5041 ×1, Fuse Set Z5050 ×1, 0 Adj Board ×1, Neck strap ×1, USB cable ×1, Application software CD (GENNECT One) ×1, AA alkaline battery (LR6) ×8, User Manual ×1
	With Pin Type Lead 9465-10 & Wireless Adapter Z3210	With Pin Type Lead L2020 & Wireless Adapter Z3210

Countries and regions where wireless operation is currently supported (Z3210)

Countries and regions where wireless operation is currently supported	Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, Indonesia, Ireland, Italy, Japan, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malaysia, Malta, Mexico, Netherlands, New Zealand, Norway, Philippines, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Taiwan, Thailand, United Arab Emirates (UAE), United Kingdom, United States, and Viet Nam
Note	Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument with the adapter attached in a country or region where they have not been approved may be subject to penalty as a violation of law.

Countries and regions where wireless operation is currently supported

Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, Indonesia, Ireland, Italy, Japan, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malaysia, Malta, Mexico, Netherlands, New Zealand, Norway, Philippines, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Taiwan, Thailand, United Arab Emirates (UAE), United Kingdom, United States, and Viet Nam

Note

Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument with the adapter attached in a country or region where they have not been approved may be subject to penalty as a violation of law.

Options

Measurement Leads (Easy 4-terminal measurement, 2.7 mm dia. single-axis type) About probe length A: From split area to probe B: Probe L: Total length
TIP PIN 9465-90 To replace the tip on the 9465-10, L2020, (one piece)	PIN TYPE LEAD 9465-10 A: 45 mm (1.77 in) red, 105 mm (4.13 in) black 515 mm (20.28 in) Max., B: 176 mm (6.93 in), L: 1883 mm (6.18 ft), 60 V DC	PIN TYPE LEAD L2020 A: 70 mm (2.76 in) (Red), 150 mm (5.91 in) (Black, up to 630 mm (24.8 in)), B: 164 mm (6.46 in), L: 1941 mm (76.42 in) (Red), 60 V DC
Measurement Leads (Large angle of probe application, 2.5 mm pitch 2-axis pin type) About probe length A: From split area to probe B: Probe L: Total length
TIP PIN 9772-90 To replace the tip on the Pin type lead 9772, L2100/L2110, (one piece)	PIN TYPE LEAD 9772 A: 45 mm (1.77 in) red, 105 mm (4.13 in) black 515 mm (20.28 in) Max., B: 173 mm (6.81 in), L: 1880 mm (6.17 ft), 60 V DC
Measurement Leads (Clip type, others) About probe length A: From split area to probe B: Probe L: Total length
CLIP TYPE LEAD WITH TEMPERATURE SENSOR 9460 For the 3554, 3540, A:300 mm (11.81 in), B:106 mm (4.17 in), L:2268 mm (7.44 ft)	LARGE CLIP TYPE LEAD 9467 A: 300 mm (11.81 in.), B: 116 mm (4.57 in.), L: 1360 mm (53.54 in.), tip φ 29 mm (1.14 in.), 50 V DC	REMOTE CONTROL SWITCH 9466 Can hold the values while measuring them, for the BT3554 (use with the L2020), 9772, 9465-10
Temperature Probe About probe length L: Total length
TEMPERATURE PROBE 9451 L: 1.5m (59.06 in)	TEMPERATURE PROBE (9451S) 9451-01 L: 100 mm (3.94 in)
Options 0 ADJ BOARD: Use commercially available hook-and-loop fasteners when securing to the carrying case.

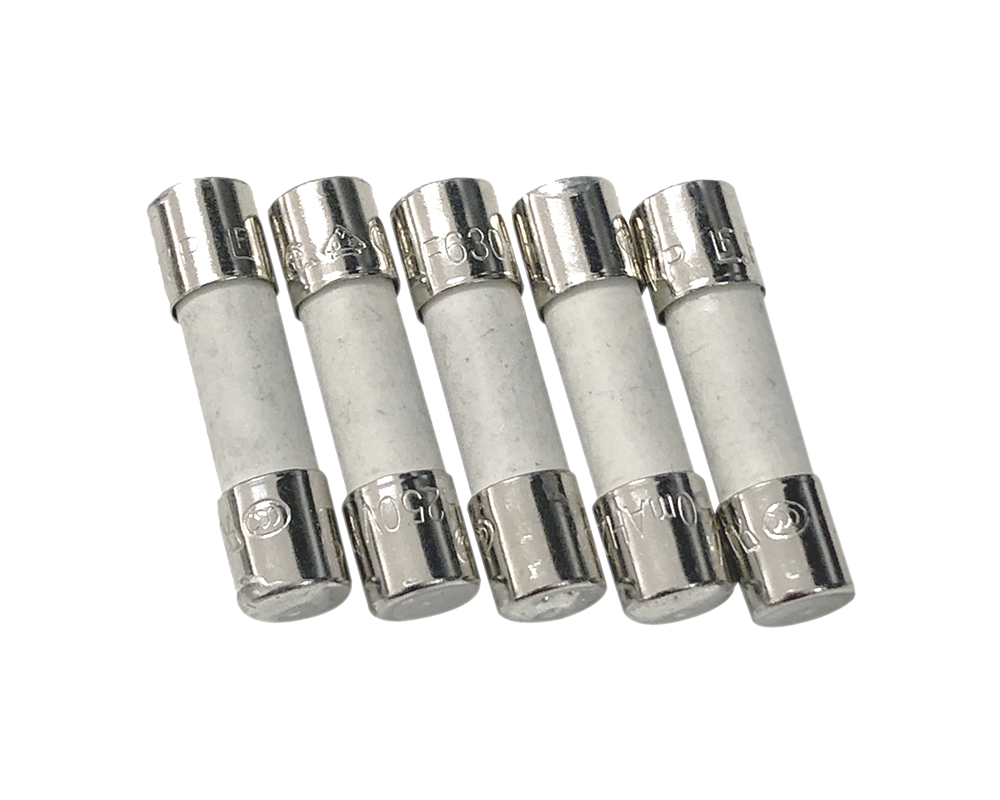

0 ADJ BOARD Z5038 For L2100, L2110, L2020, 9465-10, 9772	FUSE SET Z5050 Replacement fuse set (5 pieces), for the BT3554 and BT3554-50	WIRELESS ADAPTER Z3210 • Increase your work efficiency, by eliminating human errors from manual reporting • Transfer readings on instruments to easy-to-read graphical reports to prove integrity • Compliance with wireless regulations in more than 50 countries and regions Learn More	PROTECTOR Z5041 For BT3554 and BT3554-50
CARRYING CASE C1014 For BT3554 and BT3554-50 Hard case
PC peripherals
GENNECT CROSS SF4071, SF4072 • Mobile app for iOS, Android • Improve efficiency of operations that repeat measurement and recording • Analyze correlated data during issues and generate quick reports Learn More	GENNECT ONE SF4000 • Automatically pair with LAN-connected measuring instruments • Display acquired data graphically in real-time • Windows compatible Learn More

Catalog: GENNECT CROSS SF4071, SF4072	Download PDF [3MB]	English
Catalog: GENNECT ONE SF4000	Download PDF [4MB]	English
Catalog: WIRELESS ADAPTER Z3210	Download PDF [1MB]	English
Catalog: BATTERY TESTER BT3554-50	Download PDF [4.7MB]	English

User Guide: Electrical Measurements of Lithium-Ion Batteries	Download PDF [4MB]	English
User Guide: Lead-acid Battery Handbook	Download PDF [1MB]	English
User Guide: Sample Report at the UPS Site	Download PDF [949KB]	English
